FD-1200 Freeze Dryer

1200kg/batch industrial for freeze dryer machine CE approved cheap price for sale, low cost freeze in blast freezer, fast loading & unloading system, high efficienct vacuum industrial freeze dryers for food industrial commercial freeze-drying process plants with cheap price for sale. Contact KEMOLO the best cost-effective industrial freeze dryers manufacturers and suppliers.

  • Input capacity:: 1200kg/batch
  • Dimension:: 10060*2600*3200mm
  • Brochure: Download

WhatsApp:

+8615380024001

FD-1200 Industrial Freeze Dryer

FD-1200 industrial freeze dryer's fresh food product input capacity is 1200kg, a good model for export and shipped by container as its length is just fit a 40 feet container. The water in the fresh food is quickly frozen to -35°C becoming ice. And the ice is sublimated in o vapor and removed out of the product, collected on a low temperature vapor condenser. The product is dried 100% natural, without shape changing, color changing, nutrition lost, flavor lost, longer shelf time without additives and preservatives. The FD-1200 industrial freeze dryer machine is widely used in food industrial applications to process fruits, vegetables, plants, meat, sea food, cooked food, milk, coffee, pet’s food etc.

How much can you earn by FD-1200 industrial freeze-dryer machine?

Production period

360days/year

Daily input capacity

1200kg

Daily output capacity

240kg

Annually output

86,400kg

Lyophilized fruit price

US$40/kg

Total turnover annually

US$3,456,000

Your profit?

Contact us


The principle and process of freeze-drying
The principle of industrial freeze-drying is to remove water by sublimation and collect by condensation. The freeze-drying process is divided in o three stages: (Product freezing stage, primary lyophilization stage; secondary lyophilization stage,<1% water remained)


Advantages and applications of freeze-drying
Freeze-dried products are 100% natural, without additives and preservatives, and can be stored for up to 25 years without changes in color, shape, flavor and nutrient. KEMOLO freeze dryer is mainly used in the food, biological, dairy, nutraceuticals and pet food industries.

Fast Freeze Dry and Energy Saving

The fresh product is pre-frozen to -35°C in an individual quick freezer before entering industrial freeze dryer. High heat transfer coefficient heating plates (thermal property: 160W/m-K) are used to speed up freeze drying process. The efficiency of thermal is 11.42 times higher than traditional freeze dryers. To finish a batch of production, it takes 12-18 hours only for many kinds of food. Freeze-dry consumes a lot of power. To save energy, solar heating and steam is introduced to our freeze-dry system. The heat from refrigeration system is recycling, and the working load of compressor is reduced to 50-75% load at the middle and late stage of freeze dry, adjusted automatically according required cooling capacity. Ice on the vapor condenser could be recycled and filtered for re-use. By shorten the freeze-drying time and introducing energy saving technology, the KEMOLO industrial freeze dryers could save 30-50% energy compared with traditional freeze dryers.

industrial freeze dryer

Environment friendly

The refrigerant used in KEMOLO industrial freeze dryers has no harmful to ozone. It is approved in any countries. The freeze-drying plant is separated in o clean room and equipment room, so as to isolate noise, smog and dust pollution to food.


Equipment Safety

The KEMOLO industrial freeze dryers are with all necessary protections. The users are free from any risks of explosion, combustion and electric shock.

Industrial food freeze dryer machine CE, ISO9001, EAC, ASME, FDA

User-friendly design

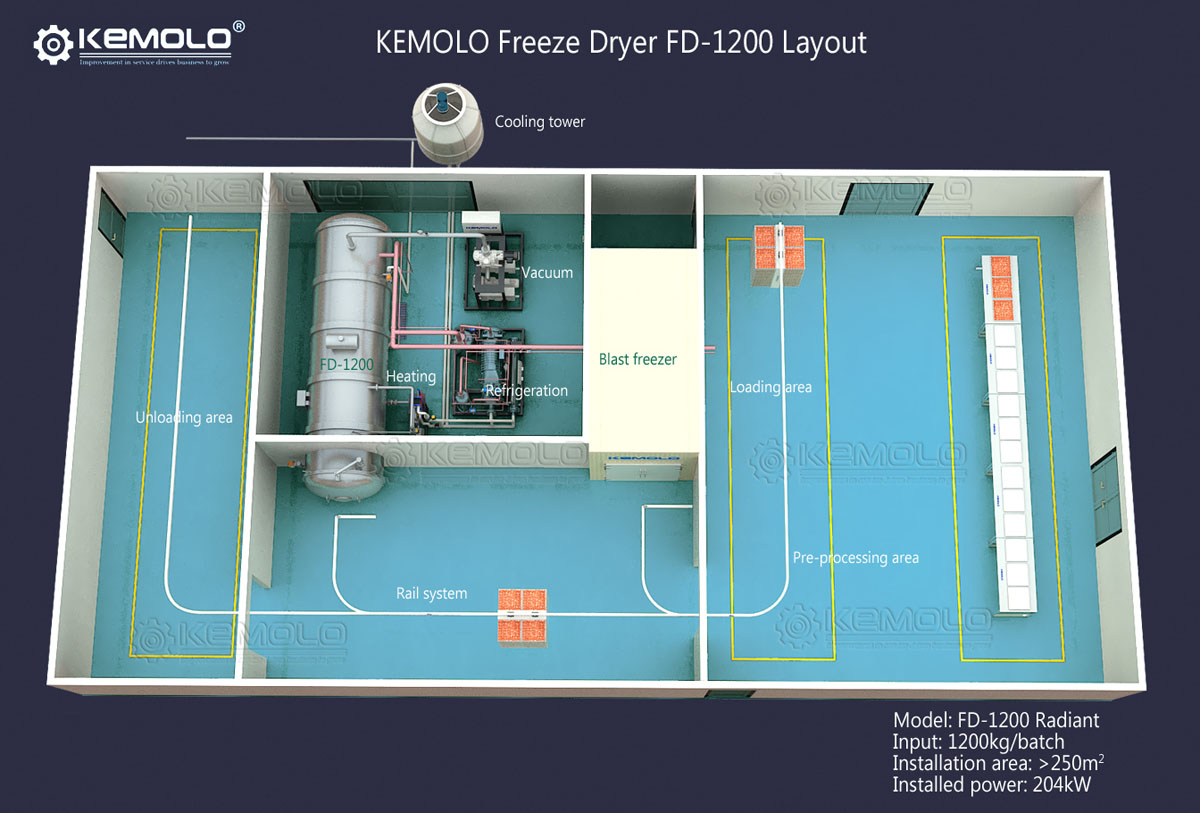

Scientific and reasonable workshop layout; The height of equipment is easy for people to operate; 4 languages in touch screen and showing at any page, the operators would never lose themselves at a foreign language page; 1 touch screen near the door, and 1 touch screen on the control box. It is convenient in use. And system can be run automatically.

5G/4G/WiFi monitor and control

KEMOLO industrial freeze dryer could be monitored and controlled by PC or mobile phone App through 5G/4G or WiFi.

Quality Control

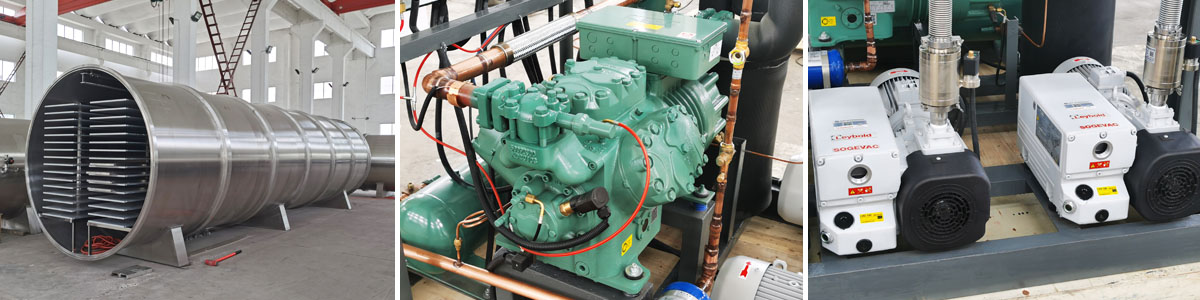

The KEMOLO industrial freeze dryer is manufactured according to the standard of CE, EAC, ASME, FDA and ISO9001. All components adopted is best make in the world, e.g., Bitzer, Leybold, Danfoss, Siemens, Schneider. The welding is Ultrasound NDT tested, and the systems are pressure tested. The FDA test reports for materials can be provided to users.

Industrial food freeze dryer machine cheap price for sale - best manufacturers

KEMOLO's Service
KEMOLO offers on-site installation, start-up, training service. 2-years warranty. A box of spare parts free of charge for backup. Response within 12 hours, and professional technical support for lifetime. If on-site technicians are needed, he will be dispatched from the nearest place in time. The large-scale project custom lyophilization and manufacturing solutions includes: budgeting, investment analysis, comprehensive drying solutions design, equipment production, shipping, import services, installation, start-up, trial production, marketing, employee training and a series of turnkey services.


Technical parameters of FD-1200 industrial freeze dryer

Model

FD-1200

Type

Radiant type

Advantage

High efficiency

Overhead rail

I steel

Overhead trolley

4 units

Input capacity

1200kg

Condenser

-45°C

Shelf temperature

5°C to 100°C

Product cooling

in IQF

Product lyophilization

in the machine

Shelf area

120 m2

Shelf function

Heating

Heating medium

Purified water

Heating/cooling

Heat exchanger

Number of trays

288 pieces

Vacuum pump

Included

Roots blower

Included

Ultimate vacuum (Pa)

10 Pa

Chamber vacuum rate

≤ 30 minutes

Compressor

Included

Refrigerant

R404A/R448A

Cooling way

Water or air

Power requirement

204kW, 50/60Hz

Defrost way

By water

Control system

Manual+Auto

Installation area (m2)

250 m2

Chamber dimension

10.1*2.6*3.2m

Weight (kg)

19000kg


As a professional manufacturer of industrial freeze dryer, KEMOLO can provide you with the complete set of lyophilization solutions you want, high-quality and low-cost industrial scale food freeze-drying equipment, and help you build your own freeze-drying brand in a short time.
